QuickServer Enhanced - Serial-Ethernet-Lonworks
QuickServer Enhanced - Cost-effective proven gateway accessing extensive FieldServer driver library
QuickServer, the high-performance, fully-configurable, cost-effective, proven gateway for integrators to easily interface devices to networks in commercial buildings, industrial plants and campuses, is also available in an Enhanced package. The QuickServer Enhanced offers all the rich benefits of the QuickServer BAS, but can accept up to 500 points, and comes complete with any two Serial or Ethernet drivers available from the extensive FieldServer Driver Library. RS-232 and RS-422 serial output options are also available on the QuickServer Enhanced.
The user can preselect two drivers (Serial, Ethernet and/or LonWorks) from the extensive FieldServer driver library to be loaded on the QuickServer at no extra charge. This includes an extensive range of building automation protocols, major fire alarm control panel protocols, and industrial control protocols. Additional drivers are available at extra costs. QuickServer is ready to configure for the specific application. All necessary instructions and software are included with QuickServer.
QuickServer Enhanced Key Features:
- Ability to interface up to 500 points of common BAS protocols
- BTL Mark - FS-QS-121X Series
- LonMark Certified - FS-QS-12X1 Series
- BACnet COV support for fast data communication while reducing traffic over a BACnet network
- Capacity of 500 LonWorks network variables - almost 5 times more than competition - FS-QS-12X1 Series
- RS-232 or RS-422 serial port options
- Multi-configuration capability; specific configurations selectable via DIP switches or software
- External DIP switches and LED lights to aid in easy set-up and operation
- Flat panel mount standard, DIN rail mount option
- DIP switches to select baud rate or node ID on the fly
- LonWorks is a trademark of Echelon Corporation
- Metasys is a trademark of Johnson Controls
- BACnet is a trademark of ASHRAE
Comprehensive list of Protocol Drivers available:

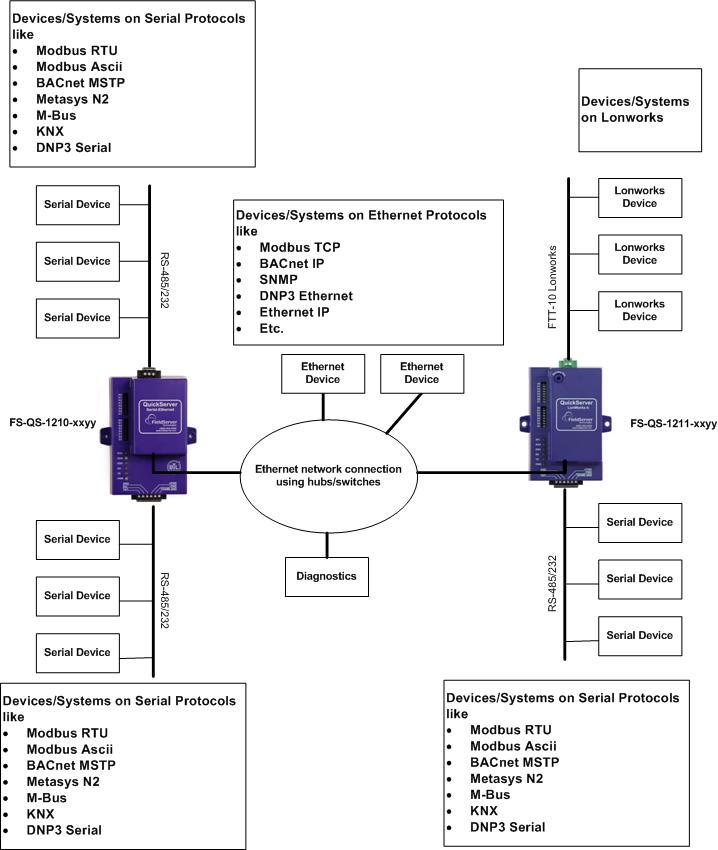

Integration solutions available for any combination of protocols from the list below:
|
Modbus RTU
|
Gardner Denver
|
Opto 22 Optomux
|
|
Allen Bradley PCCC (TCP/IP)
|
GE-EGD
|
Pneumatic Products ADC
|
|
Allen Bradley DF1
|
GE MarkIV Speedtronic
|
Point Six Wireless
|
|
Allen Bradley DH+
|
GE-SNP
|
Profibus DP Slave
|
|
ASCII General Purpose
|
GE-SRTP
|
Profibus DP Master
|
|
Armstrong FA403
|
GE Total Lighting Control
|
ProtoCessor Simple Protocol
|
|
ATMI ACM
|
Genisys
|
Rapid Engineering ICSI
|
|
ATMI TGM
|
Hanning & Kahl
|
Rapid Engineering ICSII
|
|
B&B Electronics SDD16
|
Hochiki FireNET
|
Russelectric
|
|
BACnet ARCNET
|
Honeywell Analytics Infratox
|
Schneider Electric Cassia
|
|
BACnet Ethernet
|
Honeywell Analytics System 16
|
SDD16 B&B Electronics
|
|
BACnet IP
|
JBus
|
Secutron
|
|
BACnet MS/TP
|
KNX
|
Setra
|
|
BACnet PTP
|
LonWorks;
|
Siemens FireSafety FSI
|
|
Canatal
|
Lutron eLumen Machine
|
Silent Knight
|
|
Carrier DataLink
|
M-Bus
|
SimplexGrinnell 4100
|
|
Carrier DataPort
|
McQuay
|
SimplexGrinnell TFX Minerva
|
|
Caterpillar M5X
|
Metasys DX9100 by JCI
|
SMC 2450
|
|
CEI-ABI
|
Metasys N2 by JCI
|
SMC 5000
|
|
Cisco EnergyWise Mgt API
|
MetOne
|
SMC TCP/IP
|
|
Cisco EnergyWise Endpoint
|
MicroSTAR
|
SNMP
|
|
Cleaver Brooks (CB Link
|
Mircom FX2000 Fire
|
Stulz
|
|
ControlLogix
|
Mitsubishi CHC-MF
|
TAC I/Net
|
|
ControlNet (FS-B3514
|
Modbus ASCII
|
TL1
|
|
Convia
|
Modbus Daniels
|
TOA VS-9000 Security
|
|
DataAire DAP
|
Modbus Omniflow
|
Trane XML HVAC
|
|
DataAire DART
|
Modbus Tek-Air
|
United Power FIM
|
|
Profibus DP (FS-X40
|
Modbus Plus
|
Veeder-Root
|
|
DeviceNet Master
|
Modbus TCP
|
VESDA
|
|
DeviceNet Slave
|
Notifier NFS2-3030
|
YorkTal
|
|
DNP3 Serial
|
Notifier NFS-3030
|
Trane XML HVAC
|
|
DNP3 Ethernet
|
Notifier NCA2
|
United Power FIM
|
|
EST3 ECP
|
Notifier NCA
|
Veeder-Root
|
|
EST Quickstart
|
Notifier INA
|
VESDA
|
|
EtherNet/IP
|
Notifier NFS2-640
|
YorkTal
|
|
Federal Signal Ultravoice
|
Notifier Onyx NFS-640
|
XML
|
|
Fike Cheetah
|
Notifier NFS-320
|
|
|
Firecom
|
Notifier 1010/2020
|
|
|
Gamewell-FCI E3 Series
|
Notifier AFP 200/300/400/600
|
|
|
Gamewell-FCI Model
|
Notifier Italia AM6000
|
|
|
Gamewell-FCI Model 7200
|
Notifier CEI-ABI
|
|
|
Gamewell
|
Omron FINS
|
|
|
