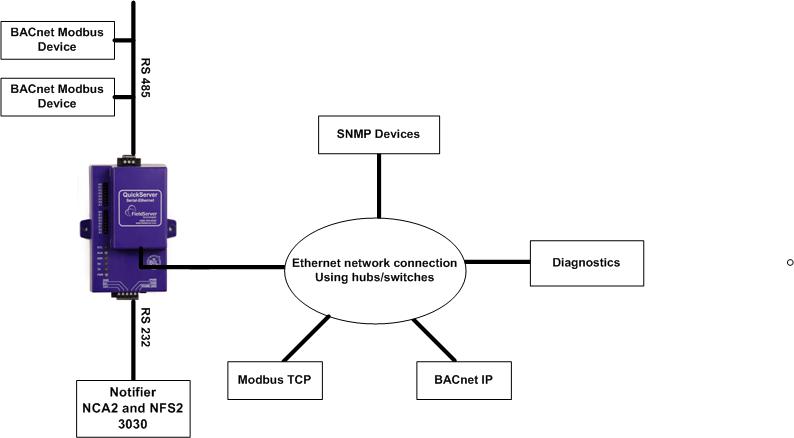

A great solution to the Notifier Communications Protocol driver allows the FieldServer to transfer data to and from Notifier NCA2/NFS2-3030 device over RS-232 (with converter) serial ports using the Notifier NCA2/NFS2-3030 protocol and provide that data on other protocol Networks like BACnet, Modbus, Lonworks, SNMP, Metasys N2 and others. The FieldServer acts as a Client; receives messages and records the status of a Panel.
|
DOWNLOAD DATASHEET
|
Question/Purchase
FieldServer Hardware platforms supporting Notifier NCA2/NFS2-3030 protocol
|
Device type
|
RS 485/232 ports
|
Lonworks Ports
|
Available Ethernet ports
|
Base Point count capacity
|
Extended Point count capacity
|
|
quick Server
|
2
|
0
|
1
|
250
|
1000
|
|
Quick Server Lonworks
|
1
|
1
|
1
|
250
|
1000
|
|
Enhanced quick Server
|
2
|
0
|
1
|
500
|
1000
|
|
Enhanced quick Server Lonworks
|
1
|
1
|
1
|
500
|
1000
|
How to configure the FieldServer Gateway?
We will configure the Gateway for you based on your requirement and support you during commissioning of the Gateway, so you do not have to worry about configuring the FieldServer Gateway. However, it is very helpful to know how to configure the devices. All the required tools and supporting product manuals with be provided completely free of cost with your purchase. Configuration of the FieldServer is done using a '.csv' file. This file can be edited using any text editor (example Microsoft excel).
In this file we need to enter information for the Client and Server side interfaces of the FieldServer. This includes but is not limited to:
o Node ids of the slave devices
o MSTP addresses/device address of the slave devices
o Baud rate, parity, stop bits for serial communication
o Scan rates
And finally we need to create an internal mapping that would map each data value read on the client side to a data value on the server side. For detailed information on configuration please get in touch with us and review the configuration manual on top of this page.
