A great solution to interconnect BACnet Devices on other protocol Networks like Modbus, Lonworks, SNMP, Metasys N2, M-Bus, KNX and others.
|
Downloads
Protocol Datasheets
BACnet
Hardware Datasheets
QuickServer
Configuration Manuals
BACnet IP
BACnet MSTP
|

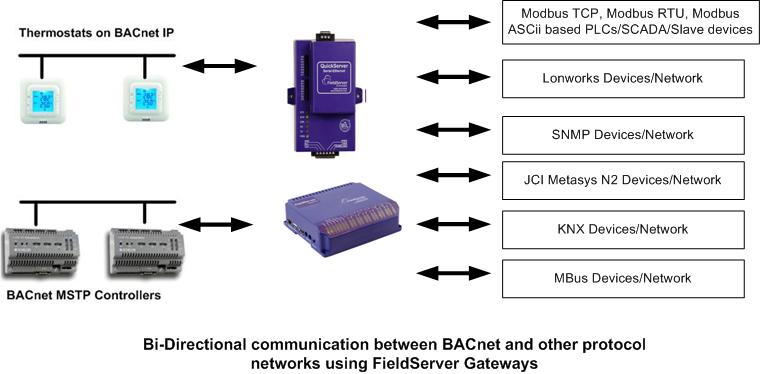

- FieldServer BACnet Gateways - a great solution to enable two way communication between:
1. Two different types of BACnet Networks or devices, for example a BACnet MSTP network and a BACnet IP network.
2. Between a BACnet MSTP network/device and a different protocol network like Modbus, Lonworks, SNMP, Metasys N2, M-Bus or KNX.
3. Between a BACnet IP network/device and a different protocol network like Modbus, Lonworks, SNMP, Metasys N2, M-Bus or KNX.
- FieldServer BACnet Gateway models have multiple RS-485 ports, Ethernet ports and Lonworks ports (depending on the model). Hence it is possible to interconnect devices on different serial, Ethernet and Lonworks protocols together.
Question/Purchase
Popular combinations for BACnet IP gateways
FieldServer Hardware platforms supporting BACnet protocol
Device type
|
RS 485/232 ports
|
Lonworks Ports
|
Available Ethernet ports
|
Base Point count capacity
|
Extended Point count capacity
|
QuickServer
|
2
|
0
|
1
|
250
|
1000
|
QuickServer Lonworks
|
1
|
1
|
1
|
250
|
1000
|
Enhanced QuickServer
|
2
|
0
|
1
|
500
|
1000
|
Enhanced QuickServer Lonworks
|
1
|
1
|
1
|
500
|
1000
|
FS-B2010
|
1
|
0
|
1
|
500
|
5000
|
FS-B2011
|
1
|
1
|
1
|
500
|
5000
|
FS-B2510
|
2
|
0
|
1
|
500
|
5000
|
FS-B3510
|
5
|
1
|
2
|
1000
|
10000
|
How to configure the FieldServer Gateway?
- We will configure the Gateway for you based on your requirement and support you during commissioning of the Gateway, so you do not have to worry about configuring the FieldServer Gateway.
- However, it is very helpful to know how to configure the devices. All the required tools and supporting product manuals with be provided completely free of cost with your purchase.
- Configuration of the FieldServer is done using a '.csv' file. This file can be edited using any text editor (example Microsoft excel).
- In this file we need to enter information for the Client and Server side interfaces of the FieldServer. This includes but is not limited to:
- Node ids of the slave devices
- MSTP addresses/device address of the slave devices
- Baud rate, parity, stop bits for serial communication
- Scan rates
- And finally we need to create an internal mapping that would map each data value read on the client side to a data value on the server side.
- For detailed information on configuration please get in touch with us and review the configuration manual on top of this page
